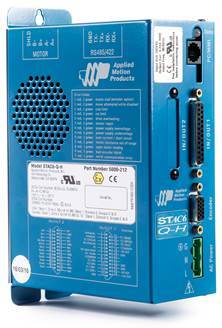

STAC6-Q-H – Advanced Step Motor Drive for Hazardous Locations

STAC6-Q-H – Advanced Step Motor Drive for Hazardous Locations

Product News Friday, February 24, 2017: Electromate Industrial Sales Ltd.

The STAC6 offers best-in-class anti-resonance that ensures optimal performance of the step motor over the widest speed range. The drive is powered by single-phase 120 VAC which generates a nominal 160 volt DC internal bus voltage capable of driving the highest torque NEMA 34 and 42 frame step motors on the market.  Features include:

·         ATEX and IECEx certified for Class I, Zone 2 locations

·         UL certified for Class 1, Div 2, Group C & D locations

·         HazLoc Step Motor Drive

·         HazLoc certified for USA, Canada, Europe and Middle East

·         Advanced anti-resonance algorithm

·         Torque ripple smoothing

·         Microstepping to 51,200 steps/rev

·         Encoder feedback option for enhanced system accuracy using Stall Detection and Stall Prevention

·         Designed for use with high quality NEMA 23, 24, 34 and 42 frame step motors

·         7 digital inputs, 3 digital outputs, all optically isolated

·         2 analog inputs, +/-10 volt range

·         Supply Voltage:  94-135 VAC, 50/60 Hz, single-phase

·         Input Power:   120 Vac, 1 Phase, 1.67 A (rms)

·         Output Power:  120 Vdc, 1 phase, 4.24 A (rms), Continuous Duty Rating

·         Control Modes:  Streaming Commands, Analog Positioning, Encoder Following, Q Programming

·         Output Current:  0.5-6.0 A/phase, peak-of-sine

·         Communication Ports:  RS-232, RS-485

·         Idle Current Reduction:  0-100%

·         Setup Method:  Software setup

·         Dimensions:    6.35 x 4.66 x 2.31 inches

·         Weight:  32 oz.

·         Ambient Temperature Range:  -40 to +55 °C (-40 to +131 °F)

·         Ambient Humidity:  90% max, non-condensing
