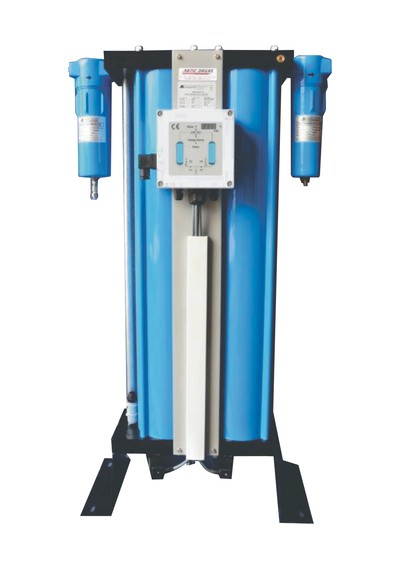

HDD Series Low Dew Point Desiccant Air Dryers

HDD Series Desiccant Air Dryers

The HDD series of heatless desiccant compressed air dryers is a great  solution applications that require low compressed air dew points along with high reliability and minimal maintenance.  This compact design allows for minus 40°C performance with -70°C options.     The HDD modular aluminium series dryers are a simple solution for any low flow application.

A portion of dried low dew point air from the online drying tower is reintroduced in a reverse direction into the “wet” tower to desorb the drying media. This low pressure air flow carries the moisture in vapour form to atmosphere via high performance silencer muffler.

The HDD dryer is fitted with a versatile timer control that allows for drying time adjustments. It also has a three position switch system that places the dryer into one of three modes, these are;

  • Timer control  only
  • Timer with dew point display
  • Integrated timer and dew point control

These dryers come complete with inlet and outlet high quality filters, dew point probe (control) is an optional extra.


  • A three tower dryer c/w an activated carbon tower is available


Number of models within this range 8
Capacities 0.14 to 2.70 m3 / min
Max working pressure 16 bar
Dew point 40 °C standard, -70° optional
