HXK Series Air Dryers

Compressed Air Filters

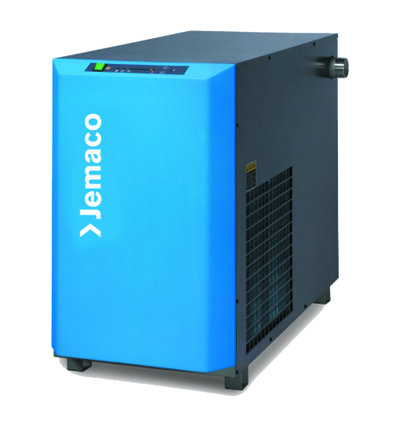

The HXK series large capacity dryers utilize an advanced stainless steel brazed plate heat exchanger manufactured in house by SPX Jemaco in Busan, South Korea.

The advanced Freon circuit design is both simple and reliable, providing air drying from 24 to 360 m³/min at 7 bar G.

The HXK series is fitted with a 3 in 1 design plate to plate exchanger with an internal condensate separator.  The large surface areas ensure dew point performance under a wide range of operating parameters with minimal pressure losses.  Drainage is via a reliable timed automatic drain, no loss drains are available as an option.

The cabinet construction is tough, the canopy is electro galvanised steel with a two part epoxy coating ensuring long service life.

 R 407, Environmentally friendly refrigerants are used on all HXK dryers


  • Water cooling
  • SCM (System  Control Monitor)
  • Stainless steel air piping throughout
  • No loss drains


Number of models within this range 13
Capacities 24.06 to 360 m3 / min
Max working pressure 12 bar
Dew point 3 °C
