R Class PD Series Air Dryers

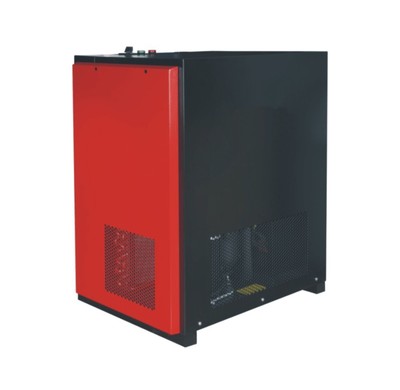

R Class PD Series Compressed Air Dryers

For clients that demand performance and proven aftercare support at a low entry cost the PD series large capacity dryers utilize an advanced aluminium plate & bar 3 in 1 heat exchanger that has an externally  mounted water condensate impingement  trapping system. The large internal surface areas ensures dew point performance under a wide range of operating parameters with minimal air pressure losses. The R class PD package provides a cost effective drying platform that has become a standard in many parts of the developed world .

The advanced Freon circuit design is both simple and reliable, providing air drying capacities from 6 to 120 m³/min at 7 bar G. Drainage is via a reliable timed automatic drain/s, no loss drains are available as an optional extra.

The cabinet construction is tough and practical with a hinged access door to the controls and safety switches, the steel canopy steel has a two part epoxy coating ensuring long service life.

 R 407, Environmentally friendly refrigerants are used on this range.


  • Water cooling
  • No loss drains


Number of models within this range 17
Capacities 6.5 to 120 m3 / min
Max working pressure 15 bar
Dew point 3 °C


High Pressure Dryers with working pressure of 45 Bar G are also available, call us for details.
